20-Ton Excavator Frame

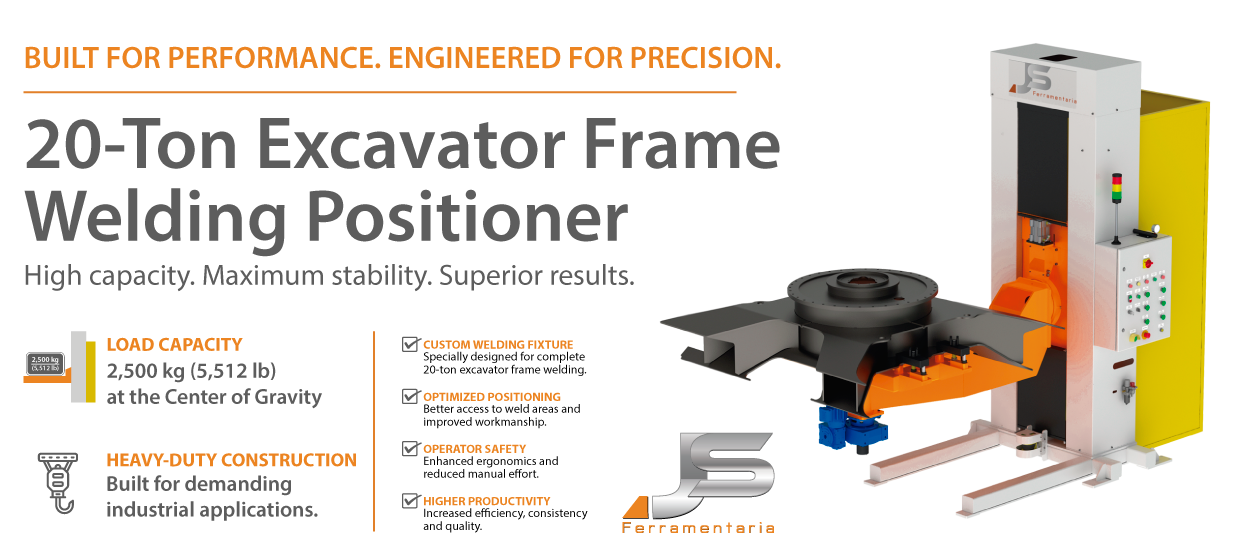

The JS Tooling Welding Positioner for 20-ton excavator frames is engineered for demanding manufacturing environments, delivering precision, safety, and optimal workpiece positioning throughout frame assembly and full welding operations.

With a load capacity of up to 2,500 kg (5,512 lb) at the center of gravity, the positioner provides outstanding stability and control during the entire manufacturing process. Its design allows improved access to weld joints, resulting in higher weld quality, greater operator efficiency, and superior structural integrity.

The system includes a custom-engineered welding fixture designed specifically for complete welding of 20-ton excavator frame assemblies, increasing productivity, ensuring process repeatability, and reducing operator effort.

Key Features:
• Load capacity: 2,500 kg (5,512 lb) at the center of gravity
• Custom welding fixture for 20-ton excavator frames
• Ideal for complete frame assembly and welding operations
• Optimized workpiece positioning for improved welding access
• Enhanced operator ergonomics and workplace safety
• Heavy-duty construction for demanding industrial applications

JS Tooling designs and manufactures custom fixtures, welding positioners, and engineered manufacturing solutions that improve productivity, precision, and quality in heavy equipment fabrication.
