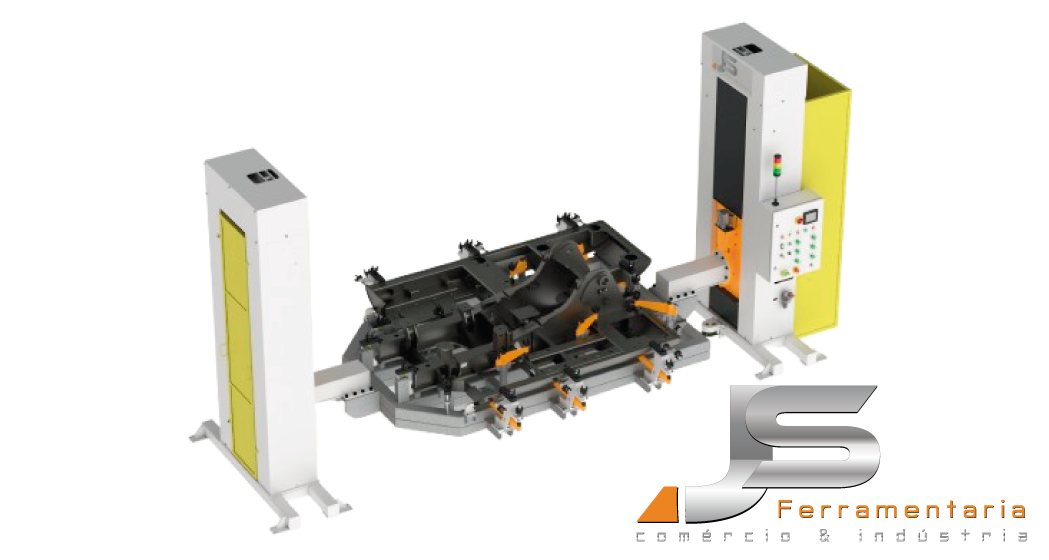

20-Ton Excavator Upper Frame Welding Positioner

Engineered for Maximum Productivity in Heavy Fabrication

The JS Tooling Welding Positioner for 20-ton excavator upper frames is engineered for demanding heavy manufacturing applications, delivering exceptional precision, stability, and productivity throughout assembly, tack welding, and complete welding operations.

With a load capacity of up to 8 metric tons (17,637 lb), the positioner provides outstanding workpiece stability and precise positioning during the entire manufacturing process. Its design offers unrestricted access to weld joints, improving weld quality, operator ergonomics, and overall production efficiency.

he system includes a custom-engineered welding fixture specifically designed for the assembly, tack welding, and complete welding of excavator upper frames. By minimizing manual material handling, it enhances workplace safety while increasing manufacturing consistency and productivity.

Key Features:
• Load Capacity: 8 metric tons (17,637 lb)
• Custom-engineered welding fixture for excavator upper frame assemblies
• Ideal for assembly, tack welding, and complete welding operations
• Optimized workpiece positioning for superior welding access
• Increased productivity and manufacturing consistency
• Heavy-duty construction for demanding industrial applications

Why Choose This System:
• Increased manufacturing productivity
• Superior weld quality and process repeatability
• Reduced manual handling and operator fatigue
• Enhanced operator safety and ergonomics
• Reliable performance in heavy-duty production environments
• Designed for continuous industrial operation

JS Tooling designs and manufactures custom fixtures, welding positioners, and engineered manufacturing solutions that improve productivity, precision, and quality in heavy equipment fabrication.
