A Robust and Cost-Effective Solution for Welding Tubular Components

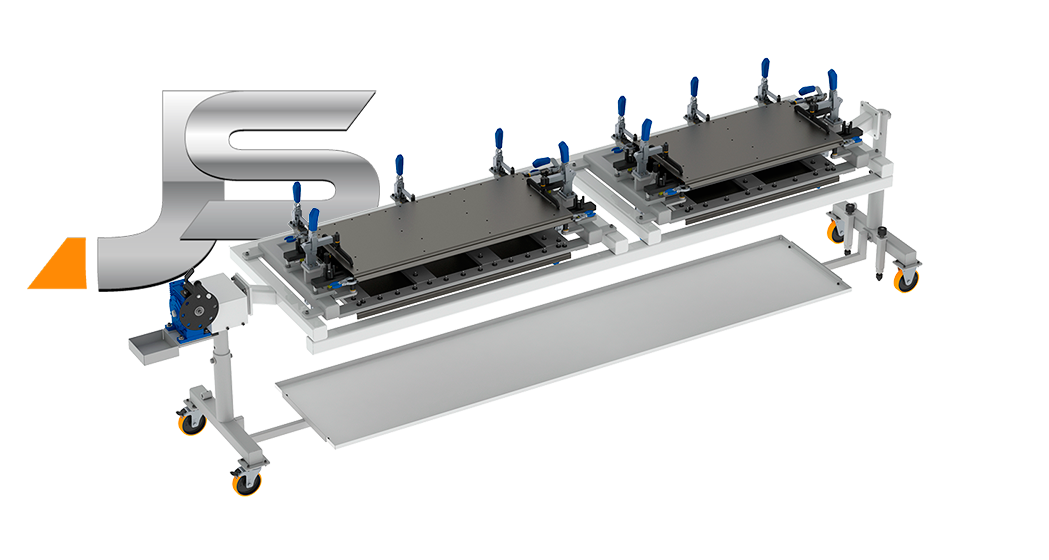

The JS Tooling Manual Rotary Welding Fixture is designed for the assembly, tack welding, and complete welding of combine harvester feeder tubes, providing a simple, efficient, and cost-effective solution for manufacturing processes that require precision, reliability, and ease of operation.

Featuring a 360° manual rotation system, the fixture allows controlled positioning of the workpiece throughout the welding process, providing full access to all weld joints and facilitating high-quality circumferential welds while improving operator ergonomics.

Its fully mechanical design eliminates the need for electrical, hydraulic, or pneumatic power, significantly reducing operating and maintenance costs without compromising productivity or process reliability.

Key Features
• Rotation System: Manual gear reducer providing smooth, controlled rotation of the feeder tube
• Mobility: 6-inch swivel casters for easy relocation and positioning within the production floor
• Heavy-Duty Construction: Heavy-duty bearing housings and precision bearings ensure durability and low-friction rotation
• Operation: Fully mechanical design requiring no electrical, hydraulic, or pneumatic power
• Rotation Range: Full 360° rotation for unrestricted access to all welding areas

Production Benefits:
• Low acquisition, operating, and maintenance costs
• Increased mobility and flexibility throughout the manufacturing facility
• Reduced workpiece handling and repositioning time
• Improved access to weld joints for higher weld quality
• Enhanced operator ergonomics
• Outstanding durability and mechanical reliability
• Ideal solution for circumferential welding of tubular components

Technical Documentation Included:
Each system is supplied with comprehensive documentation to ensure safe operation and proper preventive maintenance:

• SOPStandard Operating Procedure
• Preventive and Autonomous Maintenance Schedules AM e PM.
• Engineering Responsibility Documentation

JS Tooling designs and manufactures custom fixtures, welding positioners, and engineered manufacturing solutions that improve productivity, precision, and quality in heavy-duty manufacturing applications.
