Precision and Efficiency for Welding Tubular Assemblies

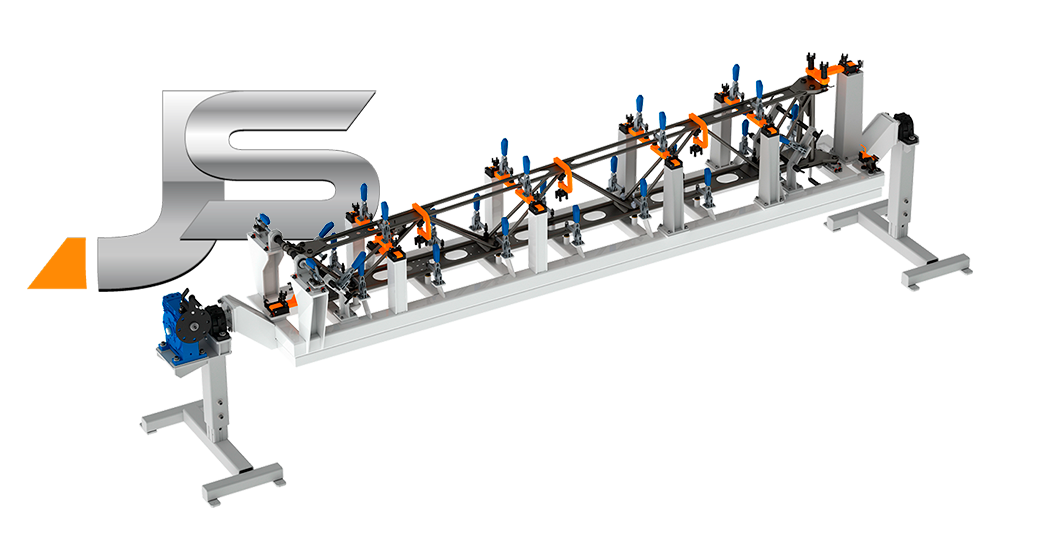

The JS Tooling Manual Rotary Fixture is engineered for the assembly, tack welding, and complete welding of sprayer boom assemblies, delivering increased productivity, operator safety, and superior weld quality in the fabrication of tubular structures.

Equipped with a gear motor-driven rotation system, the fixture provides precise workpiece positioning throughout the entire operation, allowing unrestricted access to weld joints while improving operator ergonomics. Its heavy-duty construction, combined with high-quality mechanical components, ensures reliable performance even in demanding industrial production environments.

Designed to meet modern industrial safety requirements, the system features dual-hand safety controls and an electrical control panel designed in accordance with applicable OSHA regulations, ANSI B11 machine safety standards, and NFPA 70E electrical safety requirements, providing enhanced operator protection during production.

Key Features
• Gear motor-driven rotation system for precise workpiece positioning
• Controlled rotation for optimal positioning during assembly and welding operations
• Heavy-duty construction with precision bearing housings and high-performance bearings
• Low-friction design for smooth and efficient rotation
• Dual-hand safety controls for enhanced operator protection
• Electrical control panel designed in compliance with OSHA, ANSI B11, and NFPA 70E safety requirements
• Versatile design suitable for multiple sprayer boom assembly configurations

Production Benefits
• Reduced workpiece handling and repositioning time
• Improved access to weld joints for higher weld quality
• Increased productivity and manufacturing efficiency
• Enhanced operator safety throughout the production process
• Flexible solution for manufacturing various welded tubular assemblies
• Reduced rework and improved process consistency
• Outstanding mechanical durability and long-term reliability

Technical Documentation Included

Every system is supplied with comprehensive documentation to support safe operation and preventive maintenance, including:
• Standard Operating Procedure (SOP)
• Autonomous Maintenance (AM) and Preventive Maintenance (PM) Schedules
• Engineering Responsibility Documentation

JS Tooling designs and manufactures custom fixtures, welding positioners, and engineered manufacturing solutions that improve productivity, precision, safety, and quality in heavy-duty manufacturing operations.
