Efficiency and Simplicity for Welding Tubular Assemblies

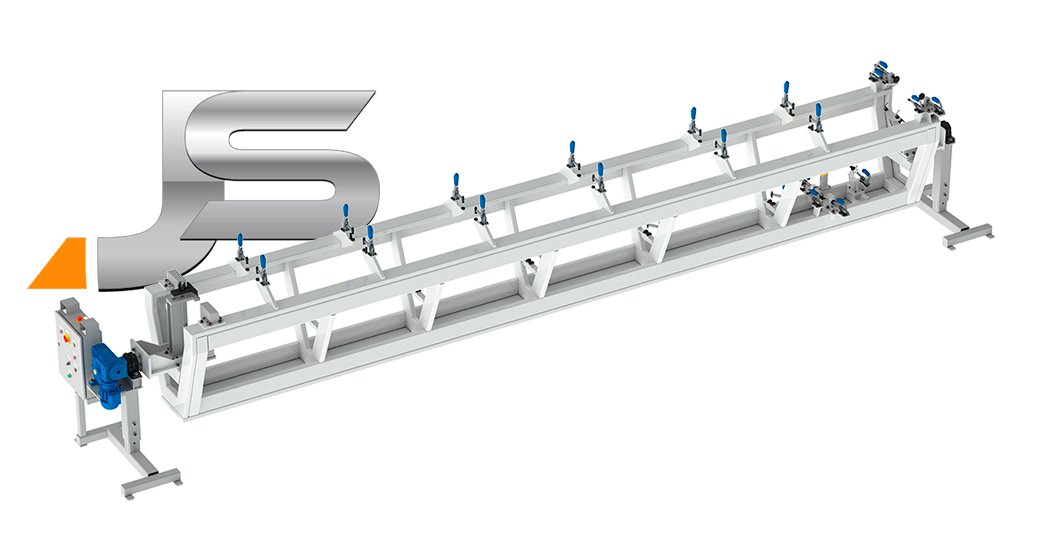

The JS Tooling Motorized Rotary Fixture is engineered for the assembly, tack welding, and complete welding of sprayer boom assemblies, providing a robust, practical, and cost-effective solution for manufacturing tubular structures used in agricultural equipment.

Designed to provide unrestricted access to all weld joints, the fixture features a controlled 360° rotation system that allows operators to position the workpiece at the optimal welding angle. This improves weld quality, operator ergonomics, and overall production efficiency while facilitating high-quality circumferential welds.

Its simplified heavy-duty mechanical design minimizes maintenance requirements and delivers outstanding reliability in demanding industrial manufacturing environments.

Key Features
• Motorized rotation system with gear reducer for smooth and controlled movement of tubular assemblies
• Full 360° rotation for unrestricted access to all welding areas
• Heavy-duty construction with precision bearing housings and high-performance bearings
• Low-friction rotation for smooth and efficient operation
• Simple, reliable design engineered for long service life
• Ideal for industrial environments requiring durability, productivity, and ease of operation

Production Benefits
• Reduced operating and maintenance costs
• Improved access to weld joints for superior weld quality
• Reduced workpiece handling and repositioning time
• Enhanced operator ergonomics
• Easy relocation and flexible use throughout the manufacturing facility
• Ideal for welding tubular structures and circumferential welds
• Outstanding durability and mechanical reliability

Technical Documentation Included
Every system is supplied with comprehensive documentation to support safe operation and preventive maintenance, including:
• Standard Operating Procedure (SOP)
• Autonomous Maintenance (AM) and Preventive Maintenance (PM) Schedules
• Engineering Responsibility Documentation

JS Tooling designs and manufactures custom fixtures, welding positioners, and engineered manufacturing solutions that improve productivity, precision, safety, and quality in heavy-duty manufacturing applications.
